| 规格/型号 | 电压 V | 频率 Hz | 转速领域 r/min | 最大扭矩 N.m | 最大输出功率 W | 防护等级 | 热分级 |
|---|---|---|---|---|---|---|---|

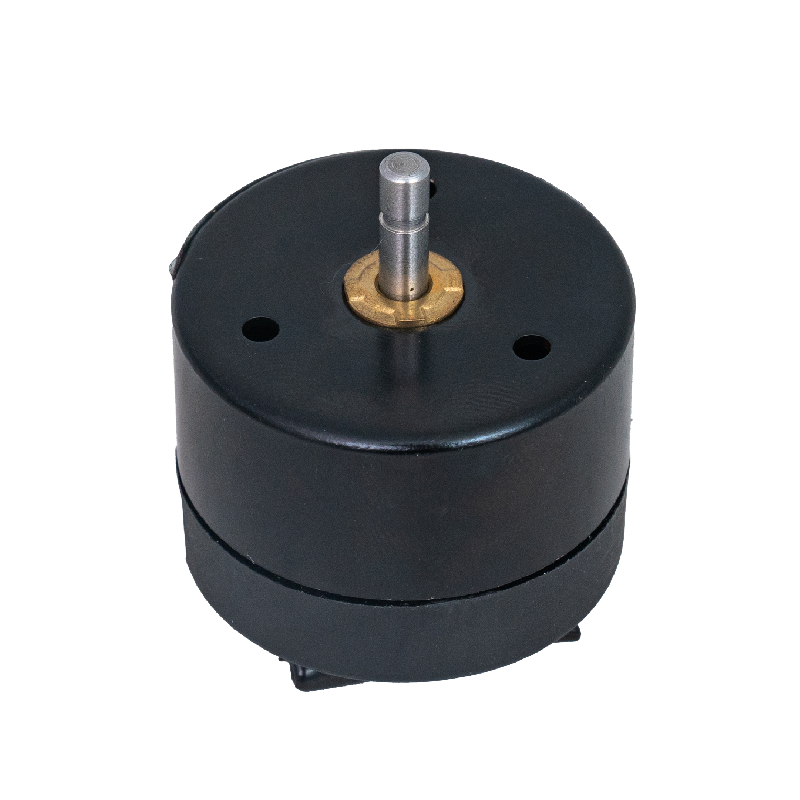

| ZWW37-1-* | DC12 | / | 500-6000 | 0.004 | 3 | IP20 | B |

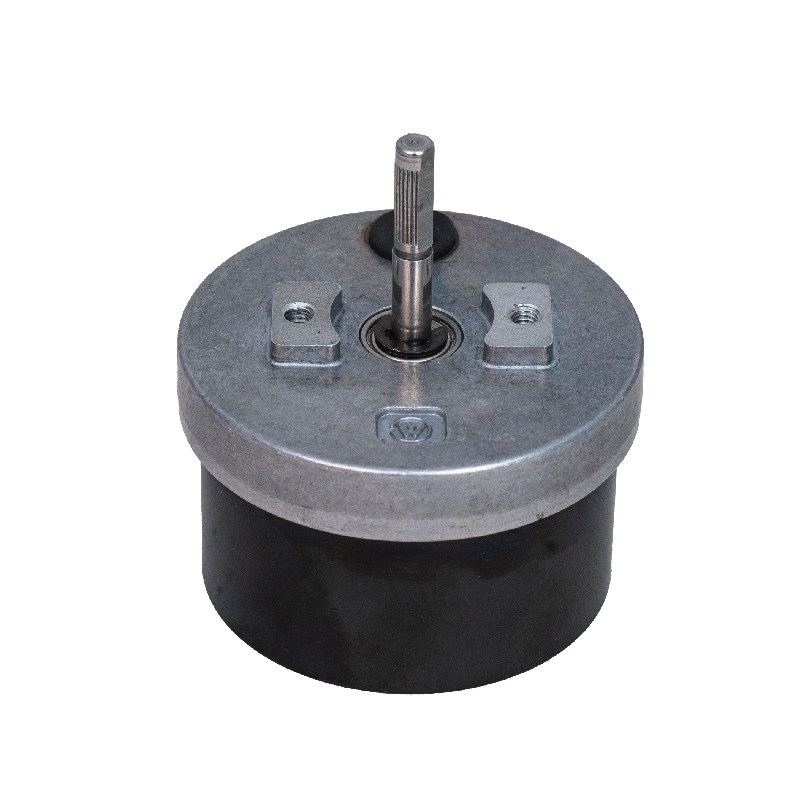

| ZWW53-1-* | DC12/24 | / | 500-10000 | 0.03 | 15 | IP20 | B |

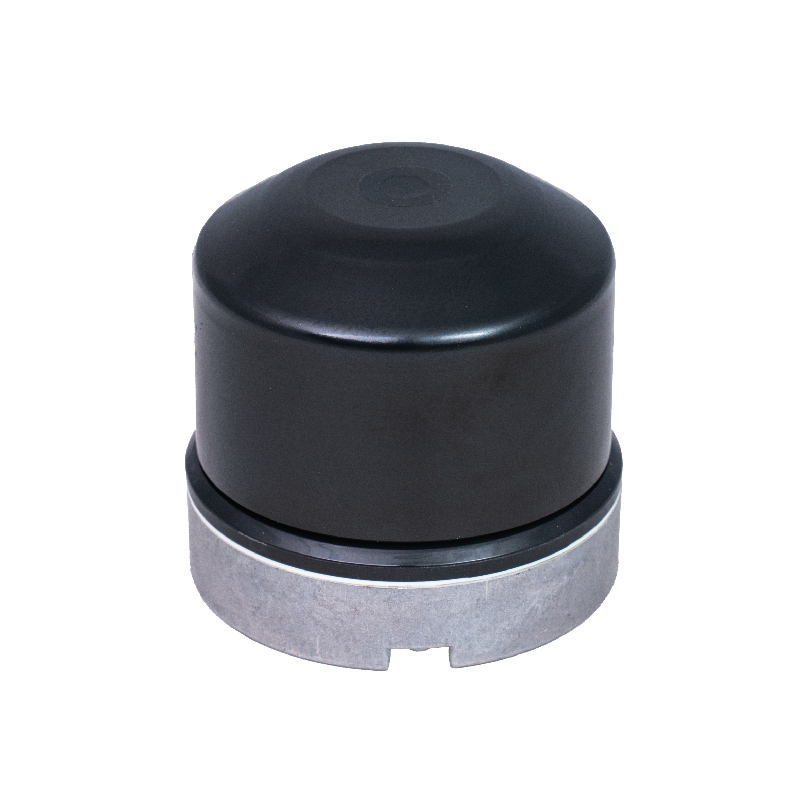

| ZWW72-1/2-* | DC12/24/48/310 | / | 500-5000 | 0.26 | 90 | IP20/IP44 | B |
| ZWW72-1/2-* | 1?AC115/230 | 50/60 | 500-5000 | 0.26 | 90 | IP55 | B |

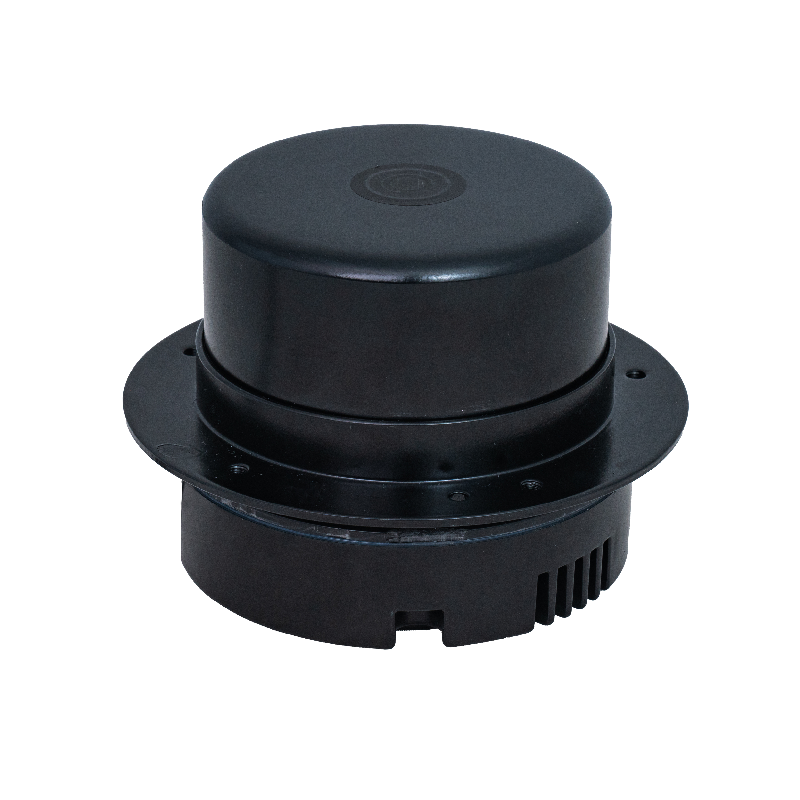

| ZWW92-1/2-* | DC12/24/48/310 | / | 500-4500 | 1 | 180 | IP20/IP44 | B |
| ZWW92-1/2-* | 1?AC115/230 | 50/60 | 500-4500 | 1 | 180 | IP55 | B |

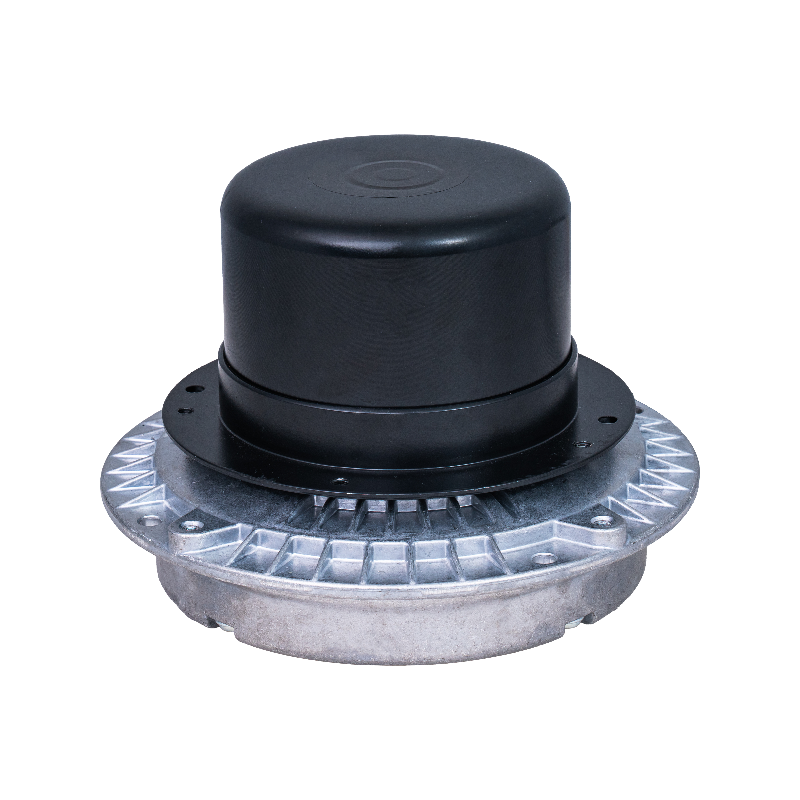

| ZWW102-1/2/3-* | DC48/310 | / | 500-4500 | 1.8 | 300 | IP20/IP44 | B |
| ZWW102-1/2/3/4-* | 1?AC230 | 50/60 | 500-4500 | 2.2 | 480 | IP54 | B |
| ZWW102-3/4-* | 3?AC380 | 50/60 | 500-4500 | 2.2 | 800 | IP54 | B |

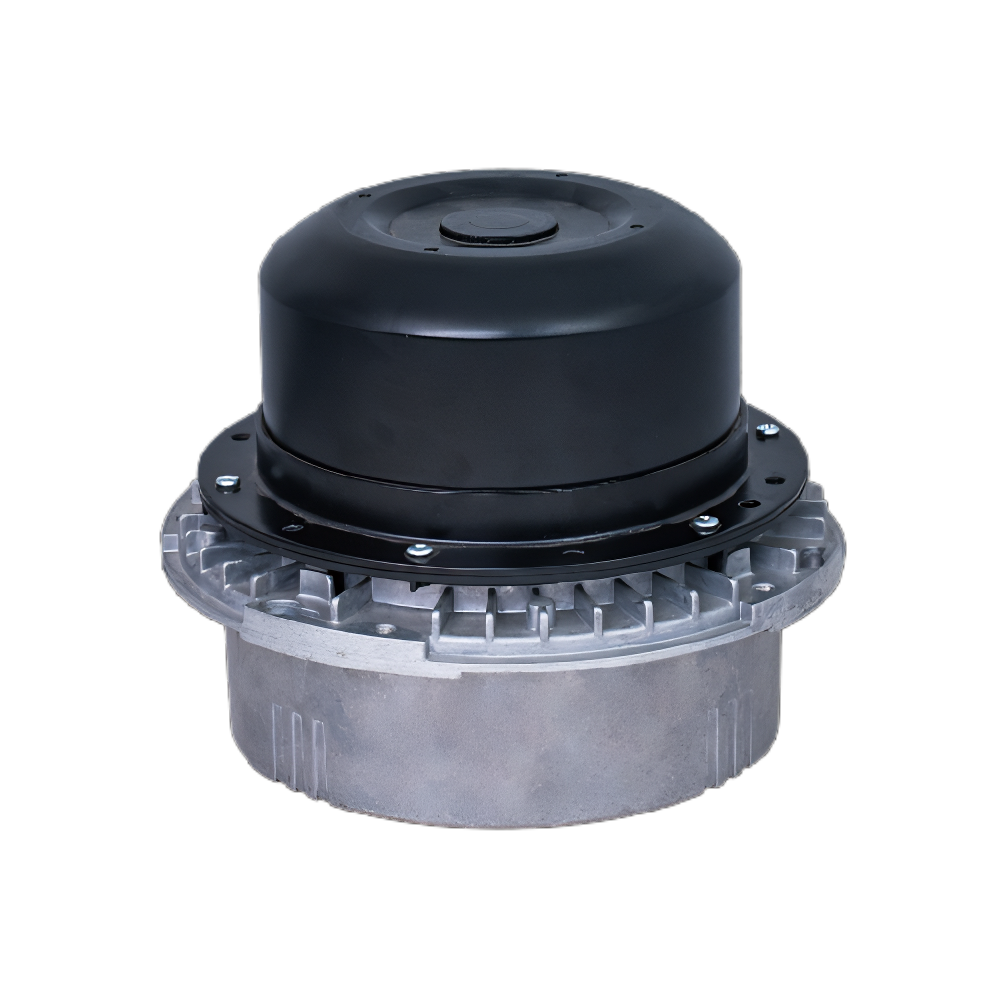

| ZWW138-1/2-* | 1?AC230 | 50/60 | 500-3000 | 5.5 | 660 | IP54 | B/F |
| ZWW138-1/2-* | 3?AC380 | 50/60 | 500-3000 | 5.5 | 1000 | IP54 | B/F |

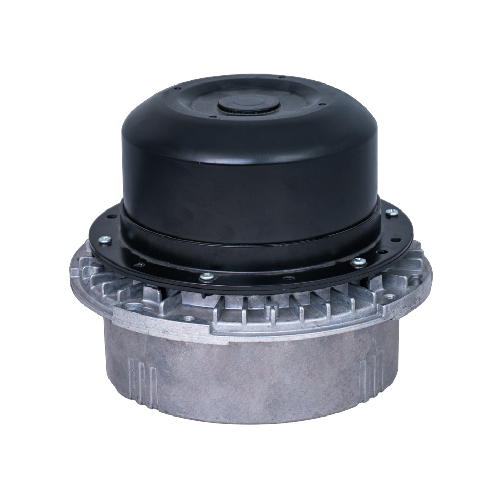

| ZWW190-1/2-* | 3?AC380 | 50/60 | 500-3000 | 30 | 5000 | IP55 | B/F |
